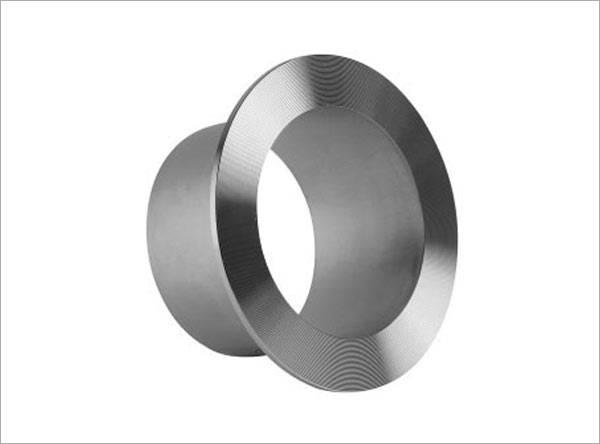

Kobs India is Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 Hastelloy Butt weld Stub End Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 Hastelloy Butt weld Stub End & other pipe fittings. Our ANSI/ASME B16.9 Hastelloy Butt weld Stub End & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards.
These ANSI/ASME B16.9 Hastelloy Butt Weld Stub End are corrosion resistance, sturdy and durable. We also supply ANSI/ASME B16.9 Butt Weld Stub End & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Butt weld Stub End. When you place an order with Kobs India, you will receive the products that will stand up in service from people that will stand behind their product. We have specialization to manufacture customized ANSI/ASME B16.9 Butt weld Stub End per customers’ specifications, we welcome small quantity order.
|
Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Alloy* | C% | Co% | Cr% | Mo% | V% | W% | Ai% | Cu% | Nb % | Ti% | Fe% | Ni% | Other% |
| Hastelloy B | 0.1 | 1.25 | 0.6 | 28 | 0.3 | - | - | - | - | - | 5.5 | rest/bal | Mn 0.80; Si 0.70 |
| Hastelloy B2 | 0.02 | 1 | 1 | 26.0-30.0 | - | - | - | - | - | - | 2 | rest/bal | Mn 1.0, Si 0.10 |
| Hastelloy X | 0.1 | 1.5 | 22 | 9 | - | 0.6 | - | - | - | 18.5 | - | rest/bal | Mn 0.6; Si 0.60 |
| Element | Min | Max |
|---|---|---|
| Molybdenum | 12.5 | 14.5 |
| Chromium | 20.0 | 22.5 |
| Iron | 2.00 | 6.00 |
| Tungsten | 2.50 | 3.50 |
| Cobalt | -- | 2.50 |
| Carbon | -- | 0.010 |
| Silicon | -- | 0.08 |
| Manganese | -- | 0.50 |
| Vanadium | -- | 0.35 |
| Phosphorus | -- | 0.025 |
| Sulfur | -- | 0.010 |
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| C22 | 115 | 55 | 60 | 89 |
| C276 | 110 | 52.6 | 62 | - |
|
Stainless Steel : Grade: 304 (1.4301), 304L(1.4307), 304H (1.4948), 309 (1.4828), 309S, 310, 310S (1.4845), 316( 1.4401), 316H, 316L( 1.4404 /1.4432) , 317, 317L (1.4438), 321 (1.4541), 321 H(1.4878), 347 (1.4550), 347H (1.4961), 904L (1.4539) Duplex Steel: Grade: 2205 (1.4507) Super Duplex Steel: Grade: 2507 (UNS S32750) Inconel : Grade: Inconel 600 (2.4640), Inconel 601 (2.4851), Inconel 625 (2.4856), Inconel 718(2.4668) Incoloy : Grade: Incoloy 800(2.4958), Incoloy 800H, Incoloy 800HT Nickel : Grade: Nickel 200, Nickel 201 Monel : Grade: Monel 400 ( 2.4360) ( 2.4360), Monel K500 (2.4375), Monel R-405 Titanium : Grade: Gr.1 (3.7025) , Gr.2 (3.7035) , Gr.3(3.7055) , Gr.5(3.7164/65), Gr. 7(3.7235) , Gr. 11 (3.7225) |
The principal methods of hot working are extrusion, drawing, forging and rolling. Rolling is the most extensive employed forming process, though some limitations may apply to the process. Rolling mainly consists of three major sub-categories: flat rolling, shape rolling (with specifically designed roll grooves) and pipe rolling (including piercing). Forging may be sub-categorized as hamming, pressing, etc. .
Forging may be performed under hammers, in mechanical presses and upsetters or by a method known as roll forging. Pressing generally includes the manufacture of forged articles in hydraulic presses. Extrusion usually is performed in hydraulic presses which force the hot steel through a die. Rolling is performed in rolling mills of a variety of types. .
The two principal reasons for perform metal forming at elevated temperatures (hot working) are to reduce the forming loads through the reduction of the resistance of the steel to deformation, and to develop preferred metallurgical structures for strength and ductility of the finish products.
The most appropriate manufacturing method of a product will be decided with consideration of its material, sizes, shape, use, standards and other properties.
