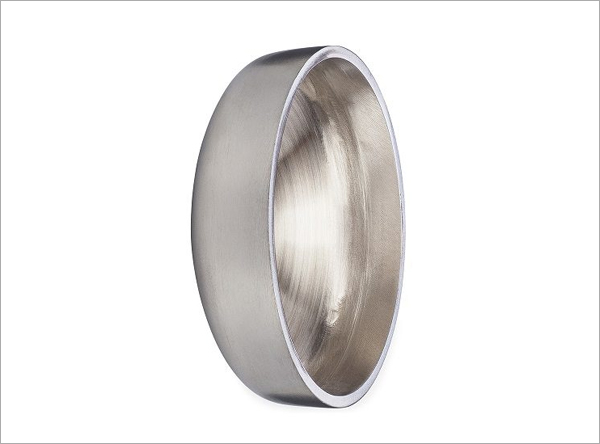

Titanium Pipe End Caps, also known as Pipe Caps, suggest their function through their name: they act as a seal to the end of a pipe. Their primary function is to waterproof piping networks in addition to resisting chemicals, moisture and weather. Our end caps have pressure releasing abilities and flexible. We offer buttweld ANSI B16.9 Pipe Caps for quick assembly that also avoid the pipe from getting cracked or damaged. Our Titanium End caps are available in high temperature resisting materials, in a variety of colours, finishes and in a wide array of sizes.
Designed in compliance with international quality standards, these ANSI/ASME B16.9 Butt Weld End Cap are corrosion resistance, sturdy and durable. We also supply ANSI/ASME B16.9 Butt weld End Cap & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of ANSI/ASME B16.9 Butt weld End Cap. When you place an order with Vishal Tube Industries, you will receive the products that will stand up in service from people that will stand behind their product.
|
Titanium : Grade: Gr.1 (3.7025) , Gr.2 (3.7035) , Gr.3(3.7055) , Gr.5(3.7164/65), Gr. 7(3.7235) , Gr. 11 (3.7225) |
| C | Fe | H | N | O | Ti |
|---|---|---|---|---|---|
| max | max | max | max | max | max |
| 0.1 | 0.2 | 0.015 | 0.03 | 0.18 | 99.5 |
| Hardness, Brinell | 120 | 120 | annealed |
|---|---|---|---|
| Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
| Hardness, Rockwell B | 70 | 70 | annealed |
| Hardness, Vickers | 122 | 122 | Estimated from Brinell. |
| Tensile Strength, Ultimate | 240 MPa | 34800 psi | |
| Tensile Strength, Yield | 170 - 310 MPa | 24700 - 45000 psi | |
| Elongation at Break | 24 % | 24 % | |
| Reduction of Area | 35 % | 35 % | |
| Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
| Compressive Modulus | 110 GPa | 16000 ksi | |
| Poisson's Ratio | 0.37 | 0.37 | |
| Charpy Impact | 310 J | 229 ft-lb | V-notch |
| Shear Modulus | 45 GPa | 6530 ksi |
|
Stainless Steel : Grade: 304 (1.4301), 304L(1.4307), 304H (1.4948), 309 (1.4828), 309S, 310, 310S (1.4845), 316( 1.4401), 316H, 316L( 1.4404 /1.4432) , 317, 317L (1.4438), 321 (1.4541), 321 H(1.4878), 347 (1.4550), 347H (1.4961), 904L (1.4539) Duplex Steel: Grade: 2205 (1.4507) Super Duplex Steel: Grade: 2507 (UNS S32750) Inconel : Grade: Inconel 600 (2.4640), Inconel 601 (2.4851), Inconel 625 (2.4856), Inconel 718(2.4668) Incoloy : Grade: Incoloy 800(2.4958), Incoloy 800H, Incoloy 800HT Nickel : Grade: Nickel 200, Nickel 201 Monel : Grade: Monel 400 ( 2.4360) ( 2.4360), Monel K500 (2.4375), Monel R-405 Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
The principal methods of hot working are extrusion, drawing, forging and rolling. Rolling is the most extensive employed forming process, though some limitations may apply to the process. Rolling mainly consists of three major sub-categories: flat rolling, shape rolling (with specifically designed roll grooves) and pipe rolling (including piercing). Forging may be sub-categorized as hamming, pressing, etc. .
Forging may be performed under hammers, in mechanical presses and upsetters or by a method known as roll forging. Pressing generally includes the manufacture of forged articles in hydraulic presses. Extrusion usually is performed in hydraulic presses which force the hot steel through a die. Rolling is performed in rolling mills of a variety of types. .
The two principal reasons for perform metal forming at elevated temperatures (hot working) are to reduce the forming loads through the reduction of the resistance of the steel to deformation, and to develop preferred metallurgical structures for strength and ductility of the finish products.
The most appropriate manufacturing method of a product will be decided with consideration of its material, sizes, shape, use, standards and other properties.
