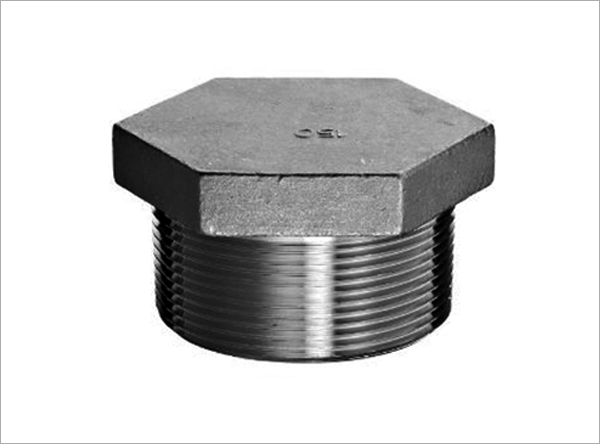

We offer our clients with Incoloy Forged Plug which is available in various sizes, shapes, and specification to suit the specific requirements of our clients.
The Incoloy Forged Plug is mainly used to close the end to the pipe. Our range of Forged Plug is easily available at industry leading prices.With years of market understanding, we are bringing forth an exceptional variety of Forged Plug. The presented products are designed underneath the supervision of diligent personnel making use of supreme-class material altogether modern techniques. As well, to eliminate all the potentials of flaws, these go through a chain of examinations before getting shipped at the doorsteps of our patrons.
Grade: Incoloy 800(2.4958), Incoloy 800H, Incoloy 800HT
|Fe||39.5 min||39.5 min||39.5 min|
|Cu||0.75 max||0.75 max||0.75 max|
|Mn||1.5 max||1.5 max||1.5 max|
|S||0.015 max||0.015 max||0.015 max|
|Si||1.0 max||1.0 max||1.0 max|
|Melting Point||1385 °C (2525 °F)|
|Tensile Strength||Psi – 75,000 , MPa – 520|
|Yield Strength (0.2%Offset)||Psi – 30,000 , MPa –205|
Stainless Steel :
Grade: 304 (1.4301), 304L(1.4307), 304H (1.4948), 309 (1.4828), 309S, 310, 310S (1.4845), 316( 1.4401), 316H, 316L ( 1.4404 /1.4432) , 317, 317L (1.4438), 321 (1.4541), 321 H(1.4878), 347 (1.4550), 347H (1.4961), 904L (1.4539)
Grade: 2205 (1.4507)
Super Duplex Steel:
Grade: 2507 (UNS S32750)
Grade: Inconel 600 (2.4640), Inconel 601 (2.4851), Inconel 625 (2.4856), Inconel 718(2.4668)
Grade: Nickel 200, Nickel 201
Grade: Gr.1 (3.7025) , Gr.2 (3.7035) , Gr.3(3.7055) , Gr.5(3.7164/65), Gr. 7(3.7235) , Gr. 11 (3.7225)
Grade: Monel 400, Monel K500 (2.4375), Monel R-405
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
The principal methods of hot working are extrusion, drawing, forging and rolling. Rolling is the most extensive employed forming process, though some limitations may apply to the process. Rolling mainly consists of three major sub-categories: flat rolling, shape rolling (with specifically designed roll grooves) and pipe rolling (including piercing). Forging may be sub-categorized as hamming, pressing, etc. .
Forging may be performed under hammers, in mechanical presses and upsetters or by a method known as roll forging. Pressing generally includes the manufacture of forged articles in hydraulic presses. Extrusion usually is performed in hydraulic presses which force the hot steel through a die. Rolling is performed in rolling mills of a variety of types. .
The two principal reasons for perform metal forming at elevated temperatures (hot working) are to reduce the forming loads through the reduction of the resistance of the steel to deformation, and to develop preferred metallurgical structures for strength and ductility of the finish products.
The most appropriate manufacturing method of a product will be decided with consideration of its material, sizes, shape, use, standards and other properties.
