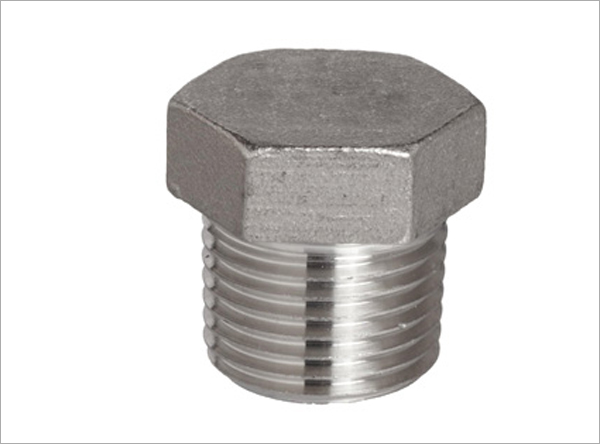

Monel Forged Plug Manufacturer in Mumbai, India

Seamless Pipes Send Enquiry

Forged Plug Manufacturer, Forged Plug Suppliers, Forged Plug Exporter.

We offer our clients with Monel Forged Plug which is available in various sizes, shapes, and specification to suit the specific requirements of our clients.

The Monel Forged Plug is mainly used to close the end to the pipe. Our range of Forged Plug is easily available at industry leading prices.With years of market understanding, we are bringing forth an exceptional variety of Forged Plug. The presented products are designed underneath the supervision of diligent personnel making use of supreme-class material altogether modern techniques. As well, to eliminate all the potentials of flaws, these go through a chain of examinations before getting shipped at the doorsteps of our patrons.


Standards Specification:

  • Specifications : ASTM A182 / ASTM SA182
  • Standerd : ASME 16.11, MSS Sp-79, 95, 97, BS 3799
  • Size : ½”Inch and 4”Inch
  • Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
  • Types : Socketweld Fitting, Screwed-Threaded Fitting

Material & Grade :

Monel :
Grade: Monel 400, Monel K500 (2.4375), Monel R-405

Chemical Composition

Grade Ni Fe C Mn Si Cu Al Ti S
K500 (2.4375) 63.0 min 05 - 2 0.25 max 1.5 max 0.5 max 27.0 - 33.0 2.3 - 3.15 0.35 - 0.85 0.010 max
400 63.0- 70.00 max 2.50 max 0.3 max 2.00 max 0.50 max Remainder - - 0.024 max

Mechanical Properties

Grade Tensile (ksi) .2% Yield (ksi) Elongation % Hardness (HRb)
400 75 to 90 25 to 50 60 to 35 60 to 80
K500 (2.4375) Psi – 1,60,000 , MPa – 1100 Psi – 1,15,000 , MPa – 790 20 % -

Product Features:

  • Sturdy design
  • Accurate dimensions
  • High strength
  • Corrosion resistant
  • Can be easily radio graphed for flaw detection
  • Offer permanent leakproof
  • Deliver a framework that uses atleast space

Other grades also available :

Stainless Steel :
Grade: 304 (1.4301), 304L(1.4307), 304H (1.4948), 309 (1.4828), 309S, 310, 310S (1.4845), 316( 1.4401), 316H, 316L ( 1.4404 /1.4432) , 317, 317L (1.4438), 321 (1.4541), 321 H(1.4878), 347 (1.4550), 347H (1.4961), 904L (1.4539)
Duplex Steel:
Grade: 2205 (1.4507)
Super Duplex Steel:
Grade: 2507 (UNS S32750)
Inconel :
Grade: Inconel 600 (2.4640), Inconel 601 (2.4851), Inconel 625 (2.4856), Inconel 718(2.4668)
Incoloy :
Grade: Incoloy 800(2.4958), Incoloy 800H, Incoloy 800HT
Nickel :
Grade: Nickel 200, Nickel 201
Titanium :
Grade: Gr.1 (3.7025) , Gr.2 (3.7035) , Gr.3(3.7055) , Gr.5(3.7164/65), Gr. 7(3.7235) , Gr. 11 (3.7225)
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X

Manufacturing Process :

The principal methods of hot working are extrusion, drawing, forging and rolling. Rolling is the most extensive employed forming process, though some limitations may apply to the process. Rolling mainly consists of three major sub-categories: flat rolling, shape rolling (with specifically designed roll grooves) and pipe rolling (including piercing). Forging may be sub-categorized as hamming, pressing, etc. .

Forging may be performed under hammers, in mechanical presses and upsetters or by a method known as roll forging. Pressing generally includes the manufacture of forged articles in hydraulic presses. Extrusion usually is performed in hydraulic presses which force the hot steel through a die. Rolling is performed in rolling mills of a variety of types. .

The two principal reasons for perform metal forming at elevated temperatures (hot working) are to reduce the forming loads through the reduction of the resistance of the steel to deformation, and to develop preferred metallurgical structures for strength and ductility of the finish products.

The most appropriate manufacturing method of a product will be decided with consideration of its material, sizes, shape, use, standards and other properties.

Product Usage & Application :

  • Useful in Paper & Pulp Companies
  • Useful in High Pressure Applications
  • Useful in Oil and Gas Industry
  • Useful in Chemical Refinery
  • Useful in Pipeline
  • Useful in High Temperature Application
  • Useful in Water Pipe Line
  • Useful in Nuclear Power Plants
  • Useful in Food Processing and Dairy Industries
  • Useful in Boiler & Heat Exchangers

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test
